Description

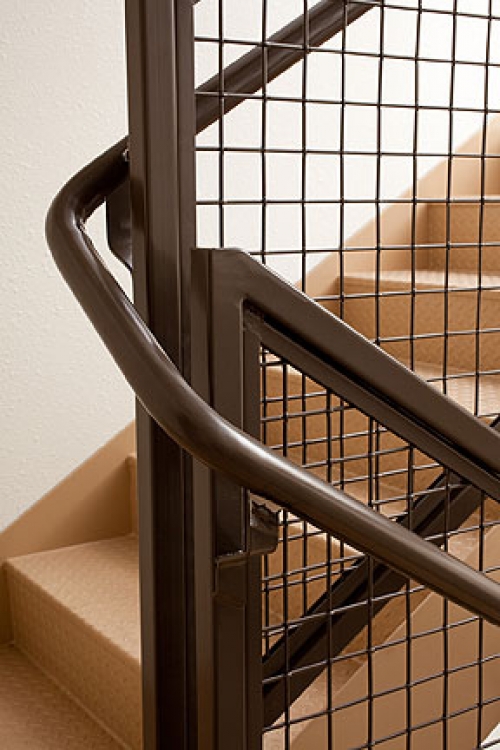

Pacific Stair Corporation's 500 Series Wire Mesh Rail provides an industrial design with ultimate protection. Our standard infill panels come with 2x2 mesh, though many other styles are available. Our Wire Mesh Rail is ideal for climbing protection and provides a more secure, sealed-off system.

  • Tube steel frame
  • Tab or direct infill attachment to frame
  • Continuous hand grab
  • IBC conforming

Standard Finishes

  • Black Primer
  • Galvanize
  • Grey Primer
  • Red Primer

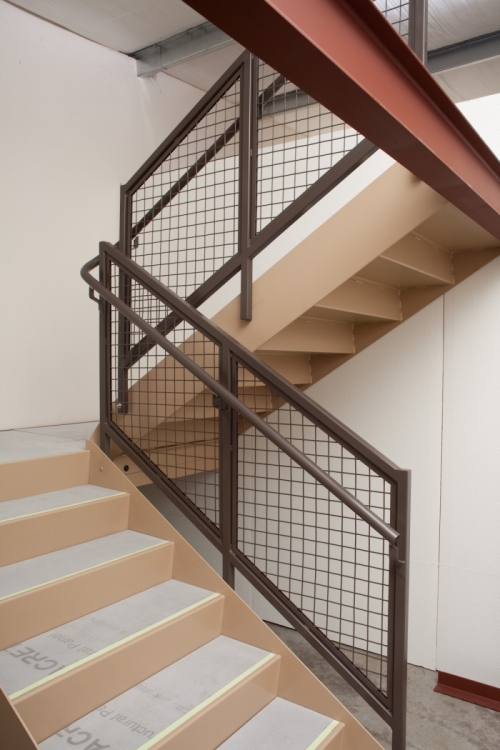

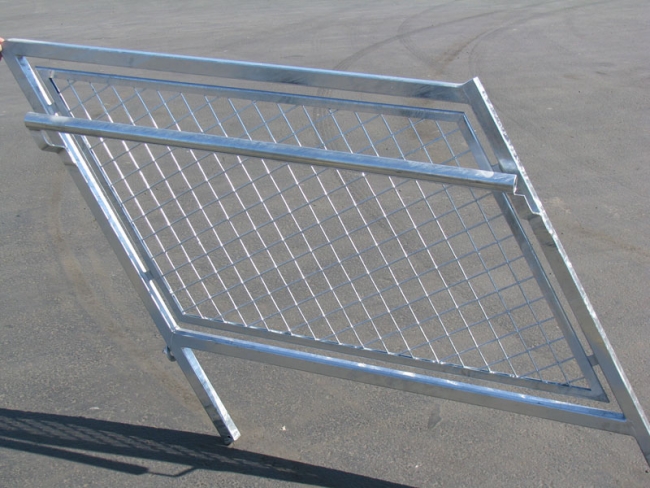

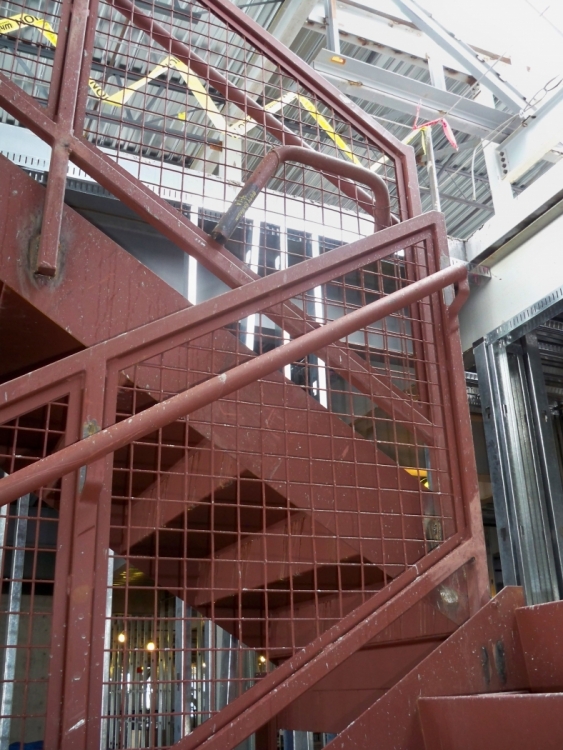

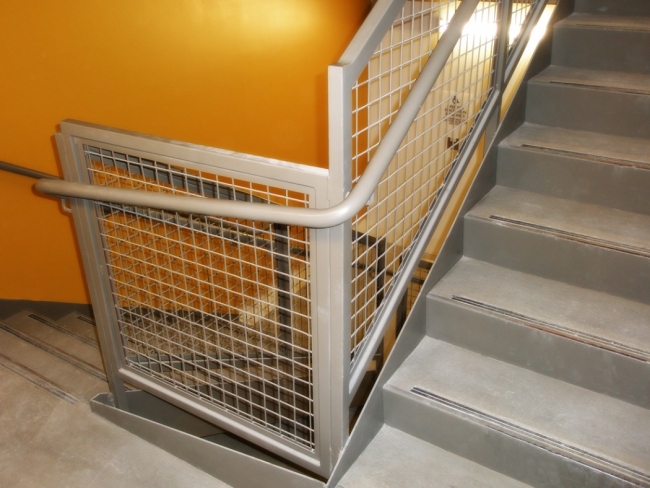

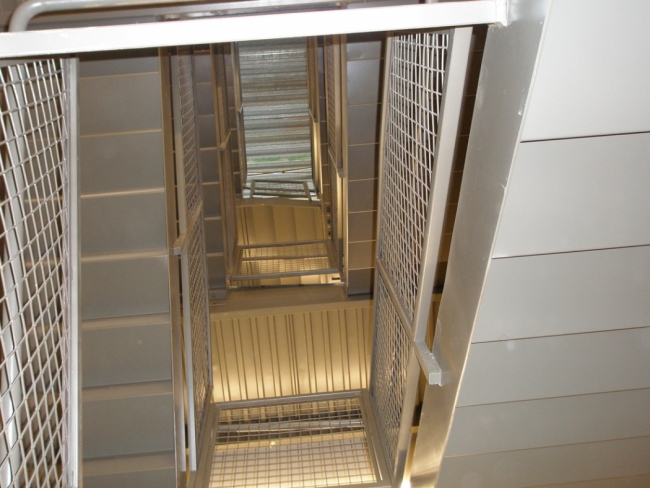

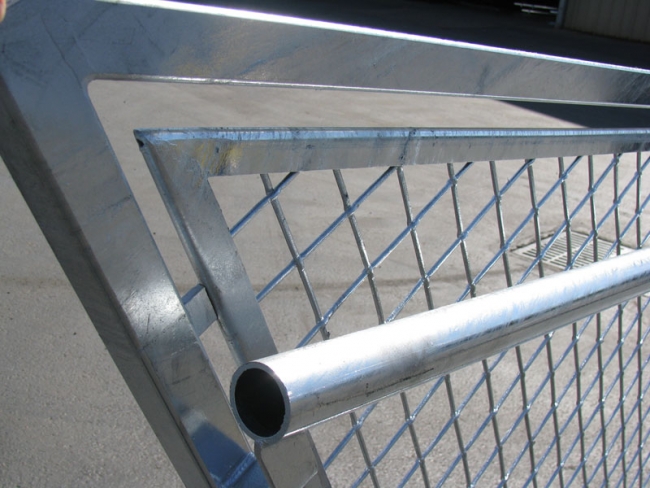

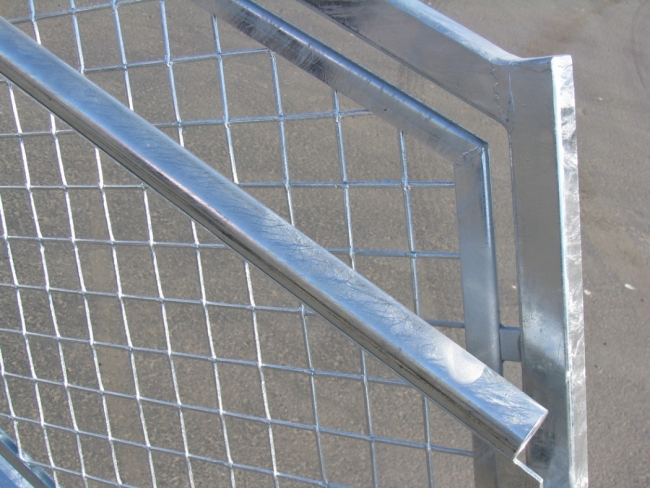

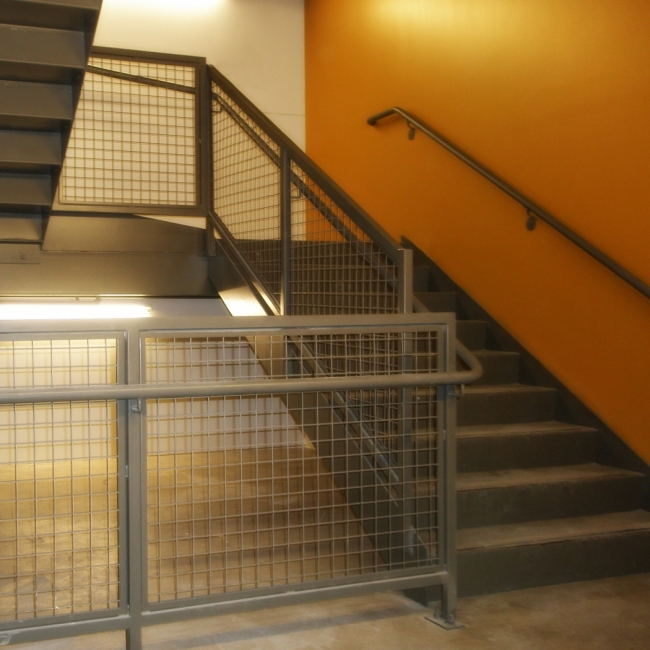

Click the images for a larger view.

Click Here to download more details from our library.

Preview Description PDF / DWG Download
R511 Wire Mesh Rail - Starter Rail With Out Level Off Handrail PDF icon r511-wire-mesh-starter-rail-with-out-level-off-handrail.pdf

Binary Data r511-wire-mesh-starter-rail-with-out-level-off-handrail.dwg
R517 Wire Mesh Rail - Starter Rail With Level Off Handrail PDF icon r517-wire-mesh-starter-rail-with-level-off-handrail.pdf

Binary Data r517-wire-mesh-starter-rail-with-level-off-handrail.dwg
R520 Wire Mesh Rail - Standard Top / Standard Bottom PDF icon r520-wire-mesh-rail-with-standard-top-standard-bottom.pdf

Binary Data r520-wire-mesh-rail-with-standard-top-standard-bottom.dwg
R521 Wire Mesh Rail - Standard Top / Extended Bottom PDF icon r521-wire-mesh-rail-with-standard-top-extended-bottom.pdf

Binary Data r521-wire-mesh-rail-with-standard-top-extended-bottom.dwg
R526 Wire Mesh Rail - Stair Rail Construction PDF icon r526-wire-mesh-stair-rail-construction.pdf

Binary Data r526-wire-mesh-stair-rail-construction.dwg
R531 Wire Mesh Rail - Top Guard Rail With Standard Handrail Return PDF icon r531-wire-mesh-top-guard-rail-with-standard-handrail-return.pdf

Binary Data r531-wire-mesh-top-guard-rail-with-standard-handrail-return.dwg
R537 Wire Mesh Rail - Standard Guard Rail With Handrail PDF icon r537-wire-mesh-standard-guard-rail-with-handrail.pdf

Binary Data r537-wire-mesh-standard-guard-rail-with-handrail.dwg
R500 Series Wire Mesh Rail Binder File PDF icon r500-series-wire-mesh-rail.pdf

Binary Data r500-series-wire-mesh-rail.dwg
